Product Information

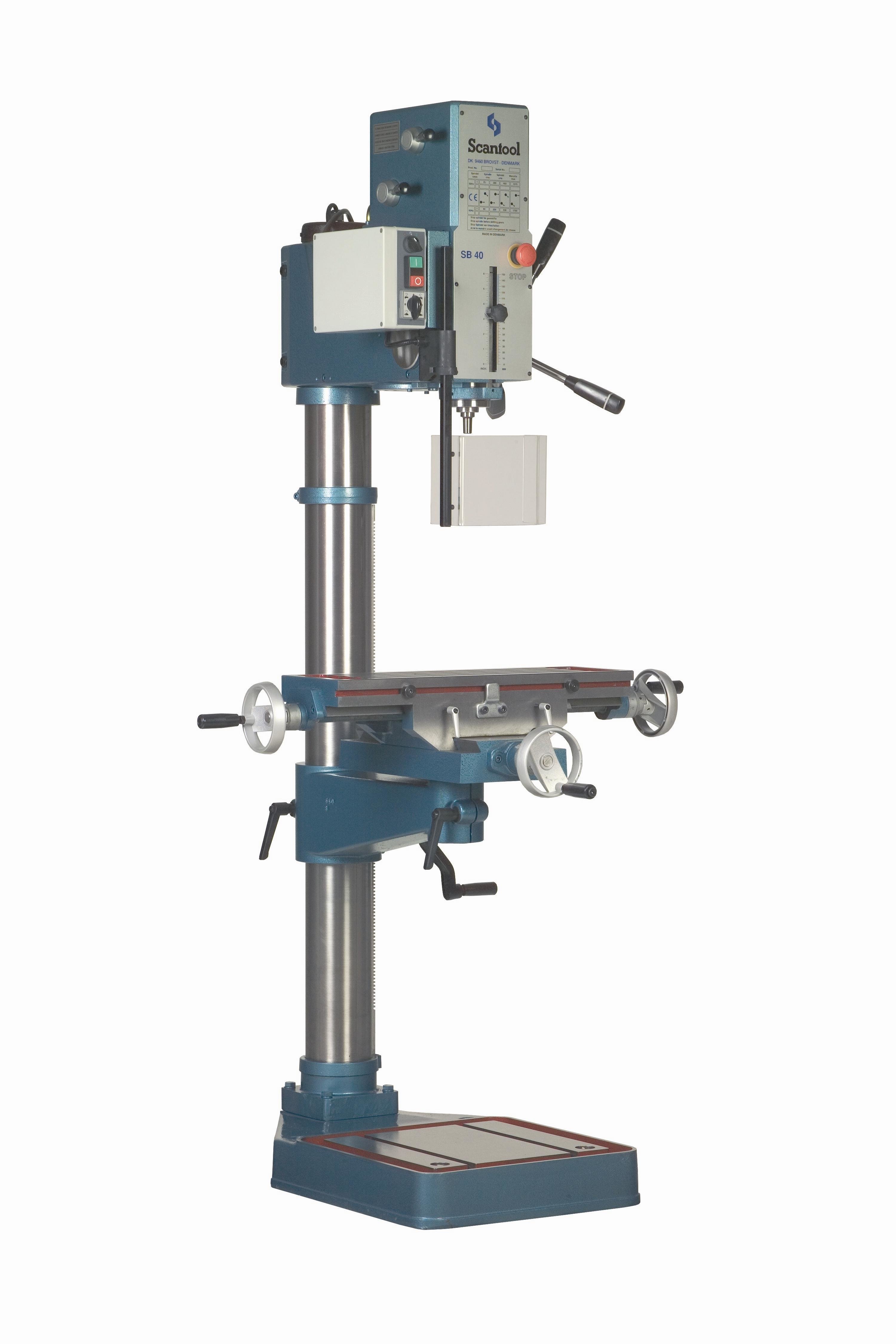

Heavy duty drilling and milling machine
Information
| Brand | Scantool |
|---|
Specification
| On Pedestal | ✓ |
| Reversible | ✓ |
| Column Diameter (ø mm) | 115 |
| Cross table (mm) | 585 x 190 |
| Distance between pedestal & spindle (mm) | 260 |
| Distance between table & spindle (mm) | 470 |
| Drilling Capacity (ø mm) | 40 |
| Head movement | 90° |
| Machine height (mm) | 1960 |
| Morse Taper | 3 |
| Motor (HP) | 1,0 |
| Motor (kW) | 0,75 |
| Net weight (kg) | 300 |
| Number of spindle speeds | 12 |
| Rpm | 50 - 2500 |
| Speed Numbers - Motor | 2 |
| Tapping Capacity | M18 |
| Throat dept (mm) | 260 |
| Voltage | 3x400/440V, 50/60Hz |
